Pyrolysis

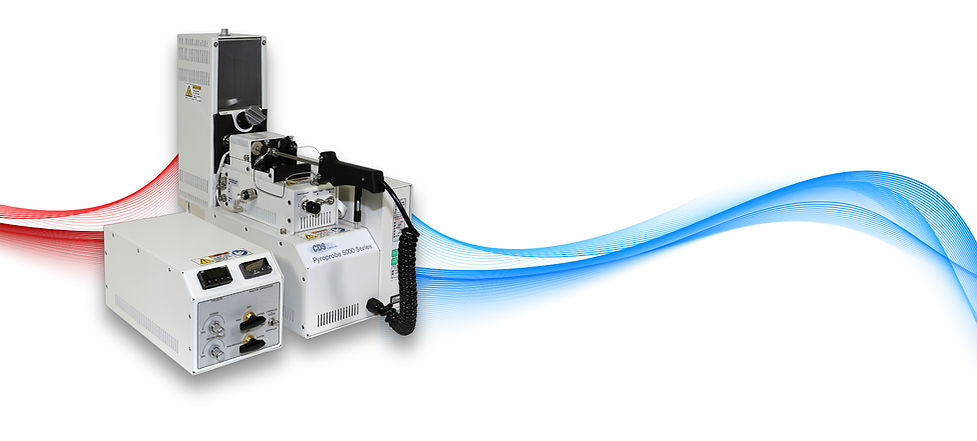

CDS 5200 HPR


Product Features
CDS Resistively Heated Filament

The CDS resistive heating coil is the most versatile way to pyrolyze your sample with the lowest thermal mass and quickest temperature ramp up rate.

Pyrolysis in Extreme Enviroments

The CDS HPR enables you to carry out pyrolysis at an elevated pressure of 500 PSI. No other systems can even come close.

User Selectable Catalyst Reactor

The CDS HPR system comes with a reactor system to enable catalysis studies at max temperature of 800°C. The reactor can be bypassed through the rotation of a valve.

Digital Display of the Pressure and Temperature

No more guess on the sample pressure, and no more mess to crash the pyrolysis tube. The pressure and temperature are accurately and digitally controlled and displayed.

Heavy Duty Back Pressure Regulator

The back pressure regulator is the most heavy duty regulator commercially available. It reliably handle the most challenging settings.

Optional Steam Module

The optional steam module allows the user to carry out pyrolysis with steam as a reactant gas by elevated pressure. This option is another CDS first in advance pyrolysis capabilities.


Product Introduction
Specifications:

Programmable Time:

Trap:

Temperature Range:

Temperature Accuracy:

Heating Rate:



Probe Clean:

Probe Dry:

System Max Pressure:

Reactor Max Temperature:

Catalyst Volume:

Interface Type:

Interface Temperature:

Interface Heating Rate:

GC Connection:

Weight:

Dimension (W x H x D):

Options:

0 - 999.9 minutes

Yes, Standard Tenax-TA

Cryotrap available

Up to 1400°C

1°C

0.01°C/ms to 20°C/ms

0.01°C/sec to 999.9°C/sec

0.01°C/min to 999.9°C/min

Yes. User-selectable.

Yes. User-selectable.

500 PSI (3.4 MPa)

800°C

6 mm X 75 mm (2 ml total volume)

Low Thermal Mass

Up to 350°C

1°C/min to 100°C/min

Heated Transfer line (up to 350°C)

25 kg

280 mm X 670 mm X 480 mm

Steam, Cryotrap

Summaries

The CDS HPR Pyroprobe enables users to study both high temperature and pressure in a micro-scale environment, with the convenience of results sent directly to their GC/MS. The unit is built on 5200 platform with a backpressure regulator and heated catalyst bed. Samples can be pyrolyzed at max 500 PSI (3400 kPa), passed through a user-selectable catalyst bed, and collected onto the built-in trap.

Applications
Please reload



Parts & Options
Instruments

Description

SKU

Pyroprobe 5200HPR Complete 220V

5004-5106

Pyroprobe 5200HPR Complete 115V

5004-5105

Please reload

Options

Description

SKU

Polymer pyrolysis GC/MS Library

10A1-3018

Additive Library

10A1-3021

Sample Prep Station

5003-5088

Please reload

Parts

Description

SKU

Economy Quartz tubes (100/pack)

10A1-3008

Fire polished quartz tubes (20/pack)

10A1-3007

Quartz Wool

1001-0345

Vespel Ferrules (10/pack)

10A1-3019

1/4" replacement coil rod

10P2-5003

Please reload
