Thermal Desorption

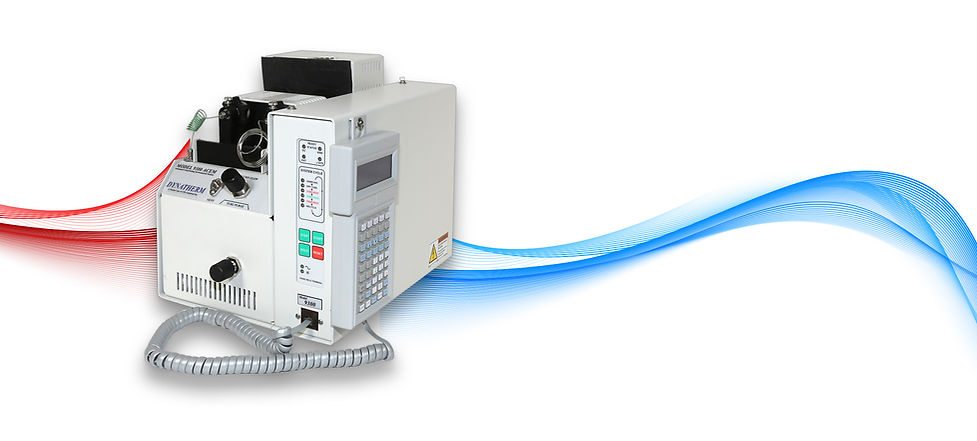

CDS 9300
Product Features
Versatile Configurations to Mainstream TD Tubes
The CDS 9300 families could be configured to adopt 6m x 4.5" CDS TD tube, 10mm x 4.5" CDS TD tube, 1/4" x 3.5" PE and Markes TD tube and VOST 16mm X 5" TD tube
Cryogen Free with Pre-Desorb and Pre-Heat
To improve the resolution of early eluting molecules, CDS uses pre-desorb and pre-heat technique to mechanically confine analytes in the focus tube until the desorption temperature is reached.
Hand-Held Plug-in Control Interface
This hand-held interface gives you easy access to the Thermal Desorption system without using a PC. This is an essential feature for mobile labs in field sampling and analysis.
High Temperature Valve Oven at max 350°C
The high temperature oven (350°C) significantly extends the analyte range from VOCs to sVOCs.
Built Tough with Easy Maintenance
The CDS 9300 is built tough on military standard. Routine maintenance only requires basic tools in accessing the components.
Powerful Windows Based Software
The software is Windows 10 compatible to give user full access to method editor and sequence table.
Product Introduction
Specifications:
Programmable Time's:
Focus Trap:
Dynamic Range:
Cyrogen:
Temperature Accuracy:
Tube Heating Rate:
Trap Heating Rate:
Valve Oven:
Transfer Line:
Sample Desorb:
Focus Desorb:
On-Line Sampling:
GC Connection:
Weight:
Dimension (W x H x D):
0 - 999.9 minutes
Yes, Standard 1/8" Vocarb
Optional 6 mm Tenax-TA
C2-C33+
Not Required. Standard Pre-Desorb
1°C
1000°C/min
900°C/min
Up to 350°C
Up to 350°C
Up to 400°C
Up to 400°C
Not supported
Heated Transfer Line
17 kg
13" X 11" X 18"
Summaries
The CDS 9300 Thermal Desorption system is the base model for single tube desorption. It features a hand-held controller for system maintenance and direct communication. With the highest programmable valve temperature on the market (350°C), the 9300 can venture into applications where other systems can not perform, including VOCs, sVOCs, polar and nonpolar compounds. The two stage trapping and desorption process with Pre-desorb and Pre-heat feature eliminate the need of any Peltier cooling or liquid cryogen to improve the resolution for early eluting molecules.
Applications
Parts&Options | Description | Part Number |
|---|---|---|
Instrument | ACEM Thermal Desorption System Model 9300 with 6 mm Trap | 9304-5024(115V)/9304-5025(220V) |
Instrument | ACEM Thermal Desorption System, Model 9300 with 1/8" trap | 9304-5082(115V)/9304-5083(220V) |
Option | 1/4" OD X 3.5" L Thermal Desorption Tube Heater Chamber for 9300 | 9304-5091 |
Option | Six-tube Conditioner - Model 9600 | 9604-5014 |
Option | Single Channel Air Sampler | 1010-0573 |
Option | Single Tube Conditioner - Model 10 | TC01-1000 |
Option | VOST (16 mm X 4.5") Heater Chamber Module for 9300 | 9304-5090 |
Parts | Sorbent Tube, 6 mm O.D. x 4 1/2" long, packed with 150 mg 60:80 mesh Tenax-TA | MX06-2111 |
Parts | Focus Trap, 4 1/2"x0.9mm 60:80 mesh Tenax-TA/Carboxen1000/CarbosieveSIII | MX06-2232 |
Parts | 1/8" SS Trap, packed with Glass Beads 60:80 mesh - 4 1/2" Long | 9301-5076 |
Parts | Sorbent Tube, empty - 4 1/2" long, 6 mm O.D. x 4 mm I.D. - straight tubing | MX06-2100 |
Parts | Focus Trap, 4 1/2" Long x 0.9 mm I.D., packed with 60:80 mesh Carbosieve SIII | MX06-2290 |
Parts | 1/8" SS Trap, Vocarb - 4 1/2" Long | 9301-5055 |
Parts | Sorbent Tube, empty- 4 1/2" long, 6 mm O.D. x 4 mm I.D. - with glass frit | MX06-2101 |
Parts | Sorbent Tube, 6 mm O.D. x 4 1/2" long, packed with 150 mg 20:35 mesh Tenax-TA | MX06-21112035 |
Parts | 6 mm O.D. x 4 1/2" Long TD tube 60:80 Tenax-TA/Carboxen 1000/Carbosieve SIII | MX06-2191 |
Parts | Sorbent Tube, 6 mm O.D. x 4 1/2" long, packed with 150 mg 60:80 mesh Tenax-TA | MX06-2111 |
Parts | 6 mm O.D. x 4 1/2" TD tube, 20:35 mesh Tenax-TA/Carboxen 1000/Carbosieve SIII | MX06-2131 |
Parts | 1/8" SS Trap, packed with Tenax - TA 60:80 mesh - 4 1/2" Long | 9301-5056 |
