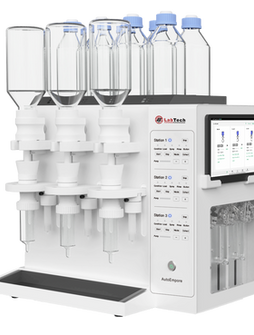

AutoEmpore Automated Solid Phase Extractor
Product Introduction
Specifications
Sample Throughput
Parallel Channels
SPE Formats
Cartridge Sizes
PFAS Compatible
Inline Filtration
Vacuum SPE
Online Water Removal Option
Sample Volume
Software Control
Dimensions
3 per Instrument
Up to 12
SPE Disk and Cartridge
47mm and 90mm
1, 3, or 6mL
Yes
Yes
Yes
100mL to 1L
Samsung Galaxy Tablet A9+
610mm x 470mm
Summary:
The LabTech CDS Analytical AutoEmpore is a first generation solid phase extraction (SPE) instrument specializing in the processing of 3 large volume water samples all in parallel. AutoEmpore instruments can also be combined together to run up to 4 instruments, 12 sample channels, all through one central controller. The AutoEmpore is equipped with inline filtration to prevent blockages and is perfect for clean water samples or dirtier samples containing particulates or sediment. Additionally, the AutoEmpore provides the option to perform online drying of the eluent with sodium sulfate cartridges eliminating the manual drying process following the SPE procedure. SPE disk sizes of 47 and 90mm and cartridge sizes of 1, 3, and 6mL are formats that are all supported by the AutoEmpore.
Product Features
Independent Channel Control
Each channel has individual syringe control to maintain high flow and high processing speed without effecting the other samples.
Extended Sample Throughput
Combine up to 4 AutoEmpore instruments for parallel processing of up to 4 samples all controlled through one central Samsung tablet.
Inline Filtration
Inline filtration ensures that particulates and sediment are removed from samples to maintain high flowrate through the SPE disk or cartridge.
Applications
Category | Description (Hyperlink in Blue Color) | Part Number |
|---|---|---|
Consumable | Filter Tip Assembly for Small Volume Sample Needles for the SPE2000-6 or -8 (10 tips / bag) | LT001-15012 |
Instrument | SPE2000 8-Channel Automated Solid Phase Extraction Instrument for Food Applications | LT004-15001 |
Instrument | SPE2000 8-Channel Automated Solid Phase Extraction Instrument for Environmental Applications | LT002-15001 |
Instrument | SPE2000 6-Channel Automated Solid Phase Extraction Instrument for Environmental Applications | LT001-15001 |
Instrument | SPE2000 6-Channel Automated Solid Phase Extraction Instrument for Food Applications | LT003-15001 |
Parts | 16-Position Large-Volume Sample Rack Assembly, for 1L Bottles | LT001-15005 |
Parts | 36 Position Sample Rack for 50mL Centrifuge Tubes and 40-1mL Concentration Cups for SPE2000-6 | LT001-15002 |
Parts | Six Channel Sample Loading and Filtration Assembly for the SPE2000-6 | LT001-15011 |
Parts | 1L Reagent Bottle, 1pc/bag (SPE2000-6 or -8) | LT001-15010 |
