Product Introduction
Specifications:
Max Temperature
Temp. Control Accuracy
Heating Power
Sample Tubes
Sample Tube Volume
Digestion Hole ID
Digestion Hole Depth
Heating Material
Dimensions (L×W×H) cm
Weight (kg)
Power Supply
210°C
± 0.2°C
1400W
36
50 mL
31 mm
50 mm
Al/PTFE
42×42x19
25
230V, 50/60Hz
Summary

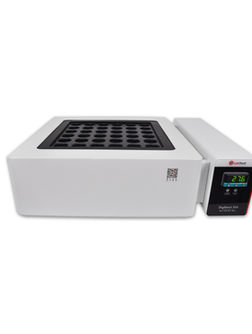

The LabTech ED36S DigiBlock digestion block has a maximum temperature of 210°C with precise temperature control to support a variety of lab applications. The Al / PTFE coated heating surface heats samples evenly and is chemically resistant to ensure a long lifetime in the lab.
Product Features
EPA Compliant
Complies with the highest standards of the US EPA methods including 200.9, 365.1, 3010A, 3020B, 3050B, and 3060.
Uniform Heating Surface
The Al heating block heats samples evenly for improved reproducibility.
Precise Temperature Control
PID regulated, precise temperature control within ± 0.2°C.
High Efficiency
The integrated circular heating design minimizes radiant heat loss to reduce energy usage by 75%.
Chemically Resistant
The Al alloy heating block is PTFE-coated for easy cleaning and chemically resistant to extend operating lifetime.
Flexibility
Sample tubes are available in various volume and materials, including polypropylene, PFA, glass, and PTFE.
Max Temperature
Temp. Control Accuracy
Sample Tubes
Sample Tube Volume
Digestion Hole ID
Digestion Hole Depth
Power Supply
ED36S
210°C
± 0.2°C
36
50 mL
31 mm
50 mm
230V, 50/60Hz
HotBlock SC100-240
150°C
± 1.5°C
36
50 mL
not provided
38 mm
230V, 50/60Hz
Applications
Microwave acid dry and pretreatment
Fast heating digestion of food, biological samples, waste water, soils, cosmetics, medicine, etc
Parts & Options
Category | Part Number | Description |
|---|---|---|
Consumable | GC-36-L | Capped Digestion Vessel : Glass/50ml/180mmH |
Consumable | GC-36-M | Capped Digestion Vessel : Glass/50ml/155mmH |
Consumable | GC-36-S | Capped Digestion Vessel: Glass/50ml/130mmH |
Consumable | SC-36 | Screw Cap Digestion Vessel: Polypropylene/50ml |
Consumable | TF-36 | Digestion Vessel with reflux cap: PTFE/50ml |
Consumable | PF-60 | Screw Cap Digestion Vessel: PFA/50ml |
Option | BKT-36N | Cold Rolling Steel Plate with Teflon coating |
