Product Introduction
Product Introduction
Specifications:

Max Temperature

Temp. Control Accuracy
Heating Power
Sample Tubes
Sample Tube Volume
Digestion Hole ID
Digestion Hole Depth

Heating Material
Dimensions (L×W×H) cm
Weight (kg)

Power Supply


210°C

± 0.2°C

1000W

16

100 mL

44 mm

50 mm

Al/PTFE

39×28x19

22

230V, 50/60Hz

Summary

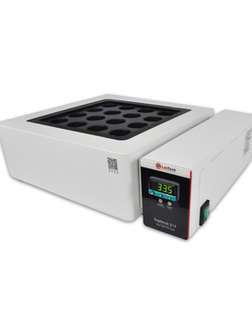

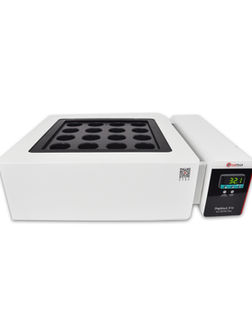

The LabTech ED16S DigiBlock digestion block has a maximum temperature of 210°C with precise temperature control to support a variety of lab applications. The Al / PTFE coated heating surface heats samples evenly and is chemically resistant to ensure a long lifetime in the lab.

Product Features
EPA Compliance.jpg

EPA Compliant

Complies with the highest standards of the US EPA methods including 200.9, 365.1, 3010A, 3020B, 3050B, and 3060.

EHD36S-4 shadow.jpg

Uniform Heating Surface

The Al heating block heats samples evenly for improved reproducibility.

digestion block screen.JPG

Precise Temperature Control

PID regulated, precise temperature control within ± 0.2°C.

High Efficiency

The integrated circular heating design minimizes radiant heat loss to reduce energy usage by 75%.

digestion block feature -2 shadow.jpg
Chemically Resistant

The Al alloy heating block is PTFE-coated for easy cleaning and chemically resistant to extend operating lifetime.

ED36S-7 shadow.jpg
Flexibility

Sample tubes are available in various volume and materials, including polypropylene, PFA, glass, and PTFE.

Product Features

Max Temperature

Temp. Control Accuracy
Sample Tubes
Sample Tube Volume
Digestion Hole ID
Digestion Hole Depth

Power Supply

ED16S

210°C

± 0.2°C

16

100 mL

44 mm

50 mm

230V, 50/60Hz

HotBlock C6002-240

150°C

± 1.5°C

12

50 mL

not provided

47 mm

230V, 50/60Hz

Applications

Microwave acid dry and pretreatment

Fast heating digestion of food, biological samples, waste water, soils, cosmetics, medicine, etc

Applications
Parts & Options
Category
Part Number
Description
Consumable
GC-16
Capped Digestion Vessel : Glass/100ml
Consumable
TF-16
Capped Digestion Vessel : PTFE/100ml
Option
BKS-16
16 Holes Stainless Steel Bracket
Parts & Options
Downloads
Downloads

Marketing Brochures
